In modern manufacturing, precision and quality assurance are critical to delivering high-performance components. As industries demand tighter tolerances and impeccable quality, investing in advanced testing facilities becomes imperative. Among the most vital instruments in a state-of-the-art testing facility are the Digital Height Master, Vision Measuring Machine (VMM), and Gear Profile Tester. These devices play a crucial role in ensuring the accuracy, reliability, and compliance of manufactured components.

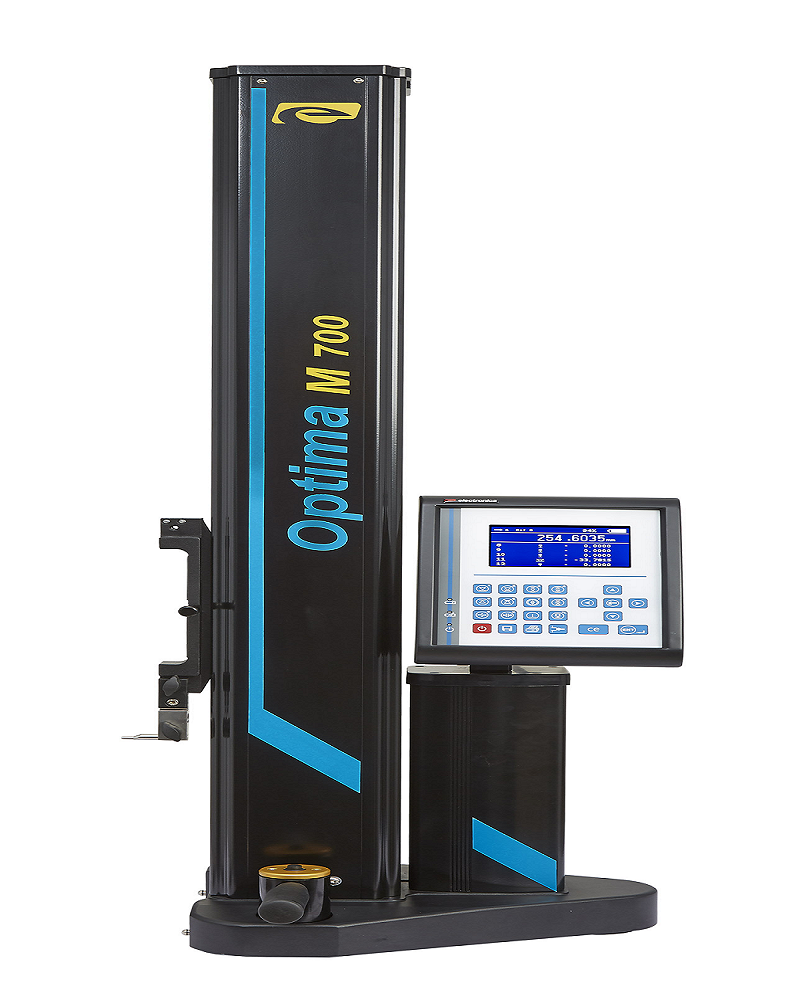

Digital Height Master: Ensuring Dimensional Accuracy
A Digital Height Master is an essential tool for precision measurement in manufacturing. It provides accurate height measurements with minimal deviation, ensuring compliance with strict dimensional tolerances. This device offers:
1. High Precision Measurements:
Capable of measuring components with micron-level accuracy.
2. User-Friendly Interface:
Digital displays make it easy to read and record measurements.
3. Repeatability & Reliability:
Eliminates human error in height and depth measurements.
4. Application Versatility:
Used across industries such as automotive, aerospace, and machining.
By integrating a Digital Height Master into the testing facility, manufacturers can achieve greater consistency in component dimensions and significantly reduce rejection rates.
Key Advantages

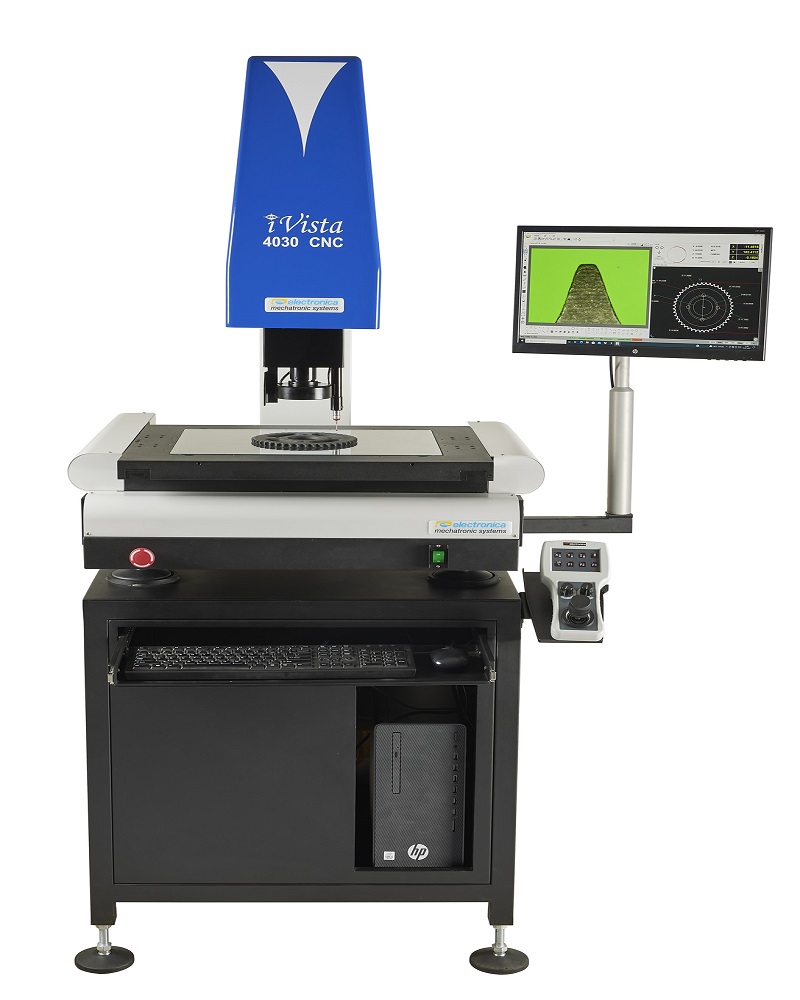

Vision Measuring Machine (VMM): Non-Contact Precision Measurement
A Vision Measuring Machine (VMM) is a non-contact optical measuring system that uses high-resolution cameras and advanced software to inspect components. This advanced tool provides:
1. High-Speed Inspection:
Capable of measuring intricate geometries in a fraction of the time compared to traditional methods.
2. Enhanced Accuracy:
Measures micro-features and complex profiles with exceptional precision.
3. Non-Destructive Testing:
Ensures components remain undamaged during inspection.
4. 3D Measurement Capabilities:
Captures precise dimensional data for quality control and reverse engineering.
VMMs are particularly beneficial in inspecting delicate and complex parts that require extreme accuracy without physical contact, making them ideal for industries such as medical devices, electronics, and automotive.

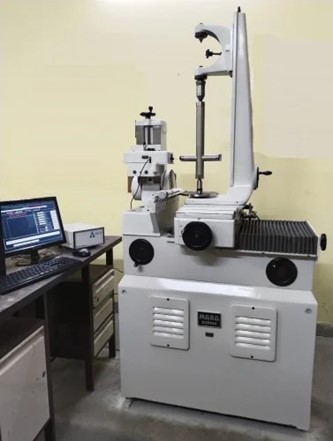

Gear Profile Tester: Ensuring Optimal Gear Performance
Gears are fundamental to the performance of numerous mechanical systems, and ensuring their accuracy is vital for efficiency and longevity. A Gear Profile Tester evaluates the geometric parameters of gears, including:
1. Profile and Lead Measurement:
Ensures correct tooth shape and alignment for smooth operation.
2. Pitch Error Analysis :
Detects deviations in gear tooth spacing that can cause operational inefficiencies.
3. Surface Finish Inspection :
Checks for irregularities that might lead to premature wear.
4. Noise and Vibration Testing :
Helps in predicting gear performance and reducing unwanted noise.
By employing a Gear Profile Tester, manufacturers can guarantee the quality and durability of gears used in applications such as automotive transmissions, industrial machinery, and aerospace systems.
Conclusion
The integration of Digital Height Masters, Vision Measuring Machines, and Gear Profile Testers in a manufacturing testing facility significantly enhances quality control and precision. These advanced measuring instruments not only ensure that components meet strict specifications but also help reduce defects, improve efficiency, and boost overall customer satisfaction. As manufacturing evolves, investing in such high-precision testing equipment remains a cornerstone for success in competitive industries.
